Product Overview
The 316 Stainless Steel Heavy Round Boat Cleat is a marine-grade boat cleat used for fishing boat mooring, anchoring, and deck hardware replacement. It is suitable for fishing boats, small marine vessels, repair shops, shipyards, and marine hardware distributors.
Key Features
- Stainless steel construction or supply options according to confirmed specification
- Designed for marine repair, replacement, and outfitting use
- Size, material, and drawing details can be checked before quotation
- Suitable for mixed marine hardware orders and export packing
Specifications
| Product Type | Boat cleat |
|---|---|
| Material | Stainless steel |
| Standard / Reference | Supplier specification or drawing confirmation |
| Application | Fishing boat mooring, anchoring, and deck hardware replacement |
| Supply | Mixed orders, export packing, and quotation by photo, size, material, and quantity |
Inquiry Notes
For replacement or repair orders, please send product photos, key dimensions, material requirements, quantity, vessel application, and destination port. CIDMEN will help match a suitable option for quotation.
Specification reference

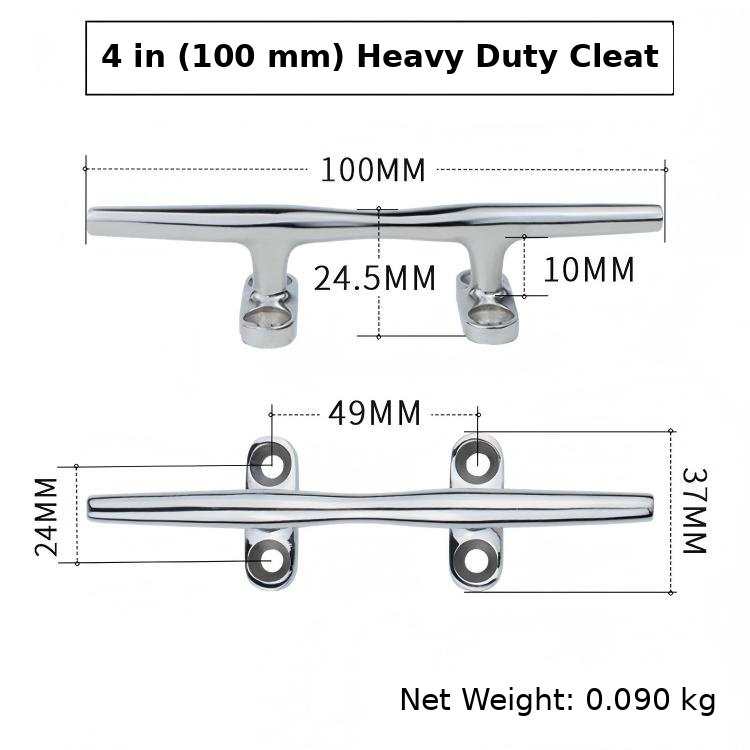

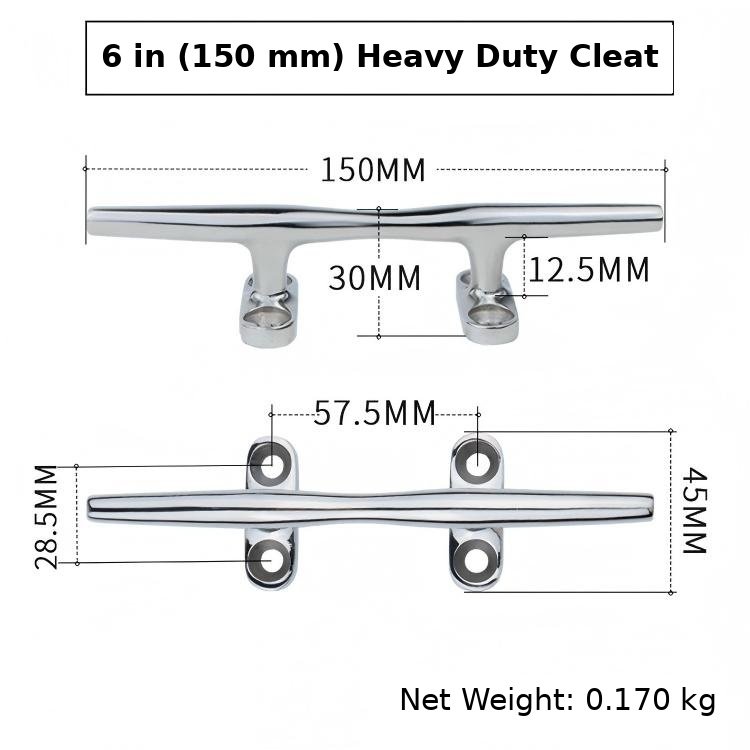

| Size | Length (mm) | Height shown (mm) | Width shown (mm) | Hole centres A (mm) | Hole centres B (mm) | Net weight shown (kg) |
|---|---|---|---|---|---|---|
| 4 inch | 100 | 24.5 | 37 | 49 | 24 | 0.090 |
| 5 inch | 125 | 29 | 38.5 | 57 | 26 | 0.110 |
| 6 inch | 150 | 30 | 45 | 57.5 | 28.5 | 0.170 |
| 8 inch | 200 | 38 | 55 | 73 | 34 | 0.358 |
| 10 inch | 250 | 44 | 65 | 94 | 46.5 | 0.560 |
| 12 inch | 300 | 55 | 70 | 110 | 50 | 0.830 |
A: centre distance between corresponding holes on the two feet along the cleat length. B: centre distance between the two holes on one foot. Mounting-hole diameter, individual foot dimensions, supply unit and included fasteners: please confirm when requesting a quotation.
Dimensions and weights shown are reference values from the available product information. Manual measurements may vary; the actual product shall prevail. Exact specifications and supply scope will be confirmed in our quotation.
Material requests
Material requests: galvanized carbon steel, 304 stainless steel, 316 stainless steel or 316L stainless steel may be specified in your inquiry. Availability, minimum order quantity and lead time will be confirmed in our quotation.
