Product Overview
The JIS F7304 Marine Bronze Angle Globe Valve is a marine bronze angle globe valve for marine pipe-line repair, fishing boat maintenance, shipyard outfitting, and distributor stock planning. CIDMEN quotes this product by confirmed size, material, standard reference, quantity, application, and destination port.
Use the listed specification range as an RFQ reference. Final pressure class, material, connection details, operating arrangement, installation position, and matching parts should be confirmed against the old item, drawing, or buyer specification before order confirmation.
Verified Specification Fields
| Product type | marine bronze angle globe valve |
|---|---|

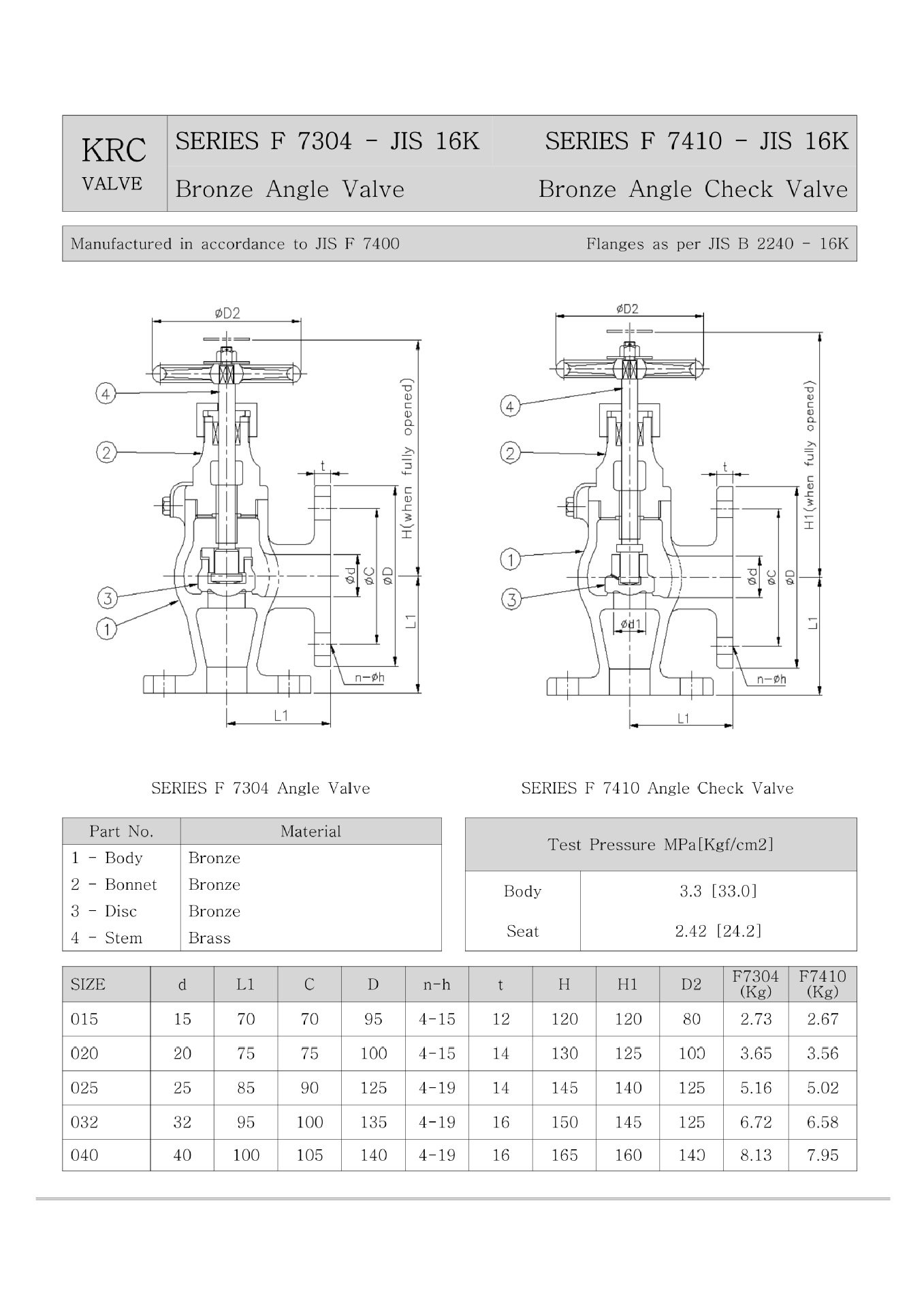

| Standard / reference | JIS F7304, 16K reference |
| Material note | bronze / brass, subject to confirmed JIS reference and trim requirement |
| Listed specification range | F7304 16K15 to 16K40; Bronze / brass; Angle globe valve; JIS F7304 reference |
| Quotation basis | Photo, drawing, standard, size, pressure class, material, quantity, vessel application, matching parts, and destination. |
Typical Marine Applications
- seawater service lines
- cooling water branches
- bilge and drain line control
- small vessel pipe-line replacement
RFQ Checklist
To reduce mismatch risk, include these details when requesting a quotation:
- Product name, standard reference, nominal size, pressure class, material, and quantity.
- Photos of the old product, nameplate or casting mark, flange face, handwheel, body orientation, glass, float or installed position when relevant.
- Application line, such as seawater, bilge, drain, cooling, ballast, tank vent, fuel, or deck service.
- Destination port, packing requirements, inspection document needs, and whether matching fittings should ship together.
Matching Notes Before Quotation
- JIS F7304 16K nominal size
- angle body inlet and outlet orientation
- handwheel clearance and installed position
- matching flange, gasket, bolt and pipe fitting details
If the exact model is unclear, send multiple photos with basic measurements. CIDMEN can help narrow quotation options, but final standard, material, pressure class, safety-related requirements, and installation details should be confirmed by the buyer or repair team.
Related CIDMEN Links
- Marine Pumps & Valves RFQ Support
- Pipe Fittings & Valves product category
- JIS F7409 Marine Bronze Globe Check Valve 16K
- JIS F7410 Marine Bronze Globe Check Valve 16K
- JIS F7415 Marine Bronze Swing Check Valve 5K
- JIS F7399 Marine Bronze Quick Closing Valve
- Fuel Line Hose Clamps and Ball Valves RFQ Guide
- Contact CIDMEN for a valve or pipe fitting RFQ
FAQ
What information is needed for a fast quotation?
Send the product name, standard, size, pressure class, material, quantity, application, photos or drawing, destination, and any matching gaskets, bolts, pipe fittings, strainers, hose clamps, or related accessories.
Can this item be included in a mixed marine hardware order?
Yes. CIDMEN can combine marine valves and pipe fittings with fasteners, hose clamps, deck hardware, lighting, rigging accessories, and other repair items for export-oriented orders.
Can CIDMEN quote alternatives if the exact model is unclear?
Usually yes, but photos, approximate dimensions, connection details, material preference, and the working line are needed before a responsible alternative can be suggested.
