Product Overview

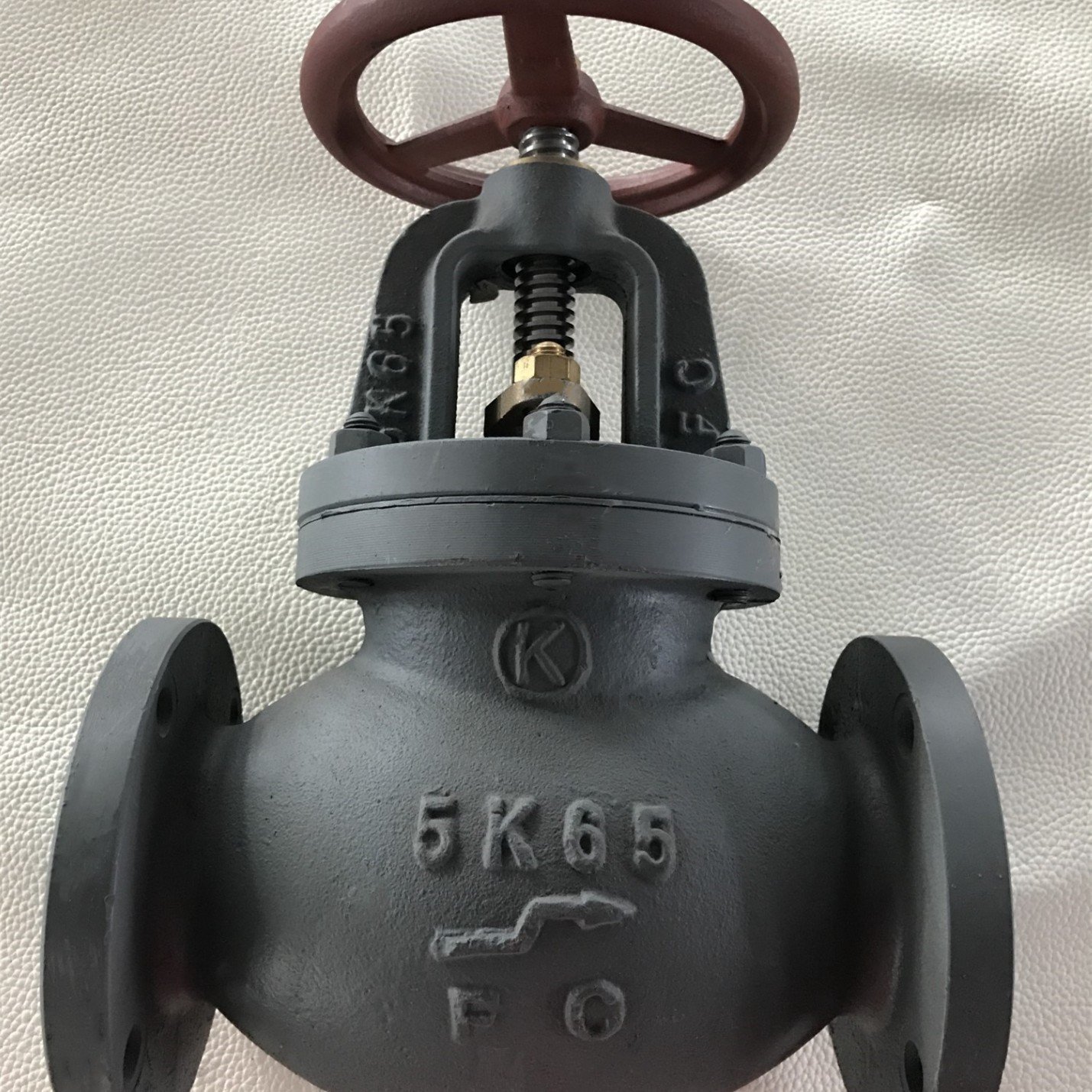

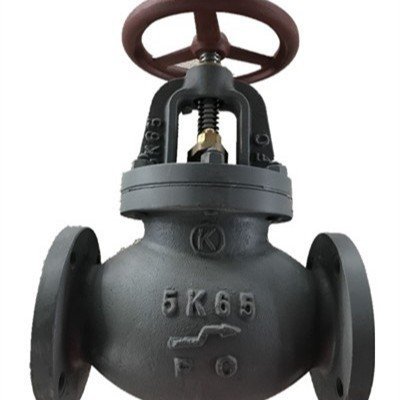

The JIS F7353 Marine Cast Iron Straight Globe Check Valve 5K is a marine cast iron straight globe check valve for marine pipe-line repair, fishing boat maintenance, shipyard outfitting, and distributor stock planning. CIDMEN quotes this product by confirmed size, material, standard reference, quantity, application, and destination port.
Use the listed specification range as an RFQ reference. Final pressure class, material, connection details, operating arrangement, installation position, flow direction, and matching parts should be confirmed against the old valve, drawing, or buyer specification before order confirmation.
Verified Specification Fields
| Product type | marine cast iron straight globe check valve |
|---|---|
| Standard / reference | JIS F7353, 5K reference |
| Material note | cast iron, subject to confirmed JIS reference, trim and flange requirement |
| Listed specification range | DN50 to DN350 nominal size; 5K pressure class; Cast iron; Straight globe check valve; JIS F7353 reference |
| Quotation basis | Photo, drawing, standard, size, pressure class, material, quantity, vessel application, matching parts, and destination. |
Typical Marine Applications
- low-pressure seawater service
- cooling water lines
- bilge and drain systems
- ship repair replacement stock
RFQ Checklist
To reduce mismatch risk, include these details when requesting a quotation:
- Valve name, standard reference, nominal size, pressure class, material, and quantity.
- Photos of the old valve, nameplate or casting mark, flange face, handwheel, body orientation, flow arrow, or installed position.
- Application line, such as seawater, bilge, drain, cooling, ballast, fuel, or deck service.
- Destination port, packing requirements, inspection document needs, and whether matching fittings should ship together.
Matching Notes Before Quotation
- JIS 5K nominal size
- straight body orientation and flow direction
- face-to-face dimension and flange detail
- matching gasket, flange bolt and pipe fitting set
If the exact model is unclear, send multiple photos with basic measurements. CIDMEN can help narrow quotation options, but final standard, material, pressure class, safety-related requirements, and installation details should be confirmed by the buyer or repair team.
Related CIDMEN Links
- Marine Pumps & Valves RFQ Support
- Pipe Fittings & Valves product category
- JIS F7354 Marine Cast Iron Angle Globe Check Valve
- JIS F7375 Marine Cast Iron Globe Check Valve 10K
- JIS F7372 Marine Cast Iron Swing Check Valve 5K
- JIS F7472 Marine Cast Steel Angle Globe Check Valve 10K
- Fuel Line Hose Clamps and Ball Valves RFQ Guide
- Contact CIDMEN for a valve RFQ
FAQ
What information is needed for a fast quotation?
Send the valve name, standard, size, pressure class, material, quantity, application, photos or drawing, destination, and any matching gaskets, bolts, pipe fittings, strainers, hose clamps, or related accessories.
Can this valve be included in a mixed marine hardware order?
Yes. CIDMEN can combine marine valves with pipe fittings, fasteners, hose clamps, deck hardware, lighting, rigging accessories, and other repair items for export-oriented orders.
Can CIDMEN quote alternatives if the exact model is unclear?
Usually yes, but photos, approximate dimensions, connection details, material preference, pressure class, and the working line are needed before a responsible alternative can be suggested.
